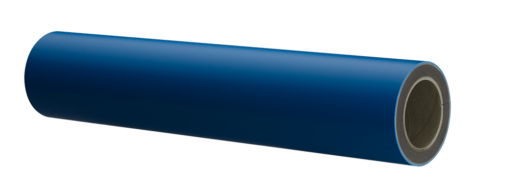

Product Overview
-
Bounce Reduction
-
Lightweight
-
Easy-mount Technology
-
Superior Dimensional Stability
-
Conductive option
- These products are ideal for high-speed applications because the construction and materials of these sleeves provide bounce reduction properties.
- These products provide superior dimensional stability because the sleeve construction includes an additional glassfibre barrier layer to prevent any growth.
- These products are an advantage for the press operator by being easier to handle. This comes from reduced weight and easier mounting properties.
- New easy-mount technology was developed for these products using advanced materials and state-of-the-art sleeve construction to make mounting easier for the press operator.
- Available with rotec® Ω Technology that provides complete conductivity from the base sleeve through to the surface.
Benefits
- Specialized sleeve construction for bounce reduction and faster press speeds
- Superior dimensional stability for long-lasting, consistent register accuracy
- Weight optimized with up to 25% reduced weight
- Newly developed easy-mount technology
Specifications
Field of Application
Narrow-web / Mid-web / Wide-web/ Pre-Print
Wall thickness
0.47 inches - 4.00 inches (12 mm - 100 mm)
Outer diameter tolerance
+/- 0.001 inches (+/- 0.025 mm)
Total indicated run-out (TIR) tolerance
+/- 0.001 inches (+/- 0.025 mm)
Length tolerance
+/- 2mm
