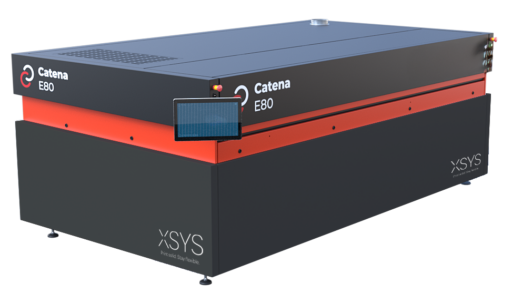

ThermoFlexX Catena-E 80

High performance LED exposure technology for precise image reproduction.

Main specifications

  • Dimensions (WxDxH)3550 x 1960 x 1350mm (140 x 77x 53”)
  • Dimensions (WxDxH) lid open2000mm (79")
  • Plate ThicknessMax. 7mm (0.276”)
  • UVA-LEDMain: Traversing 24 UV LED modules Back: Full coverage 24 UV LED modules
  • Electrical380V 3ø / N /PE 50 / 60Hz 25A
All specifications

Main specifications

  • Dimensions (WxDxH)3550 x 1960 x 1350mm (140 x 77x 53”)
  • Dimensions (WxDxH) lid open2000mm (79")
  • Plate ThicknessMax. 7mm (0.276”)
  • UVA-LEDMain: Traversing 24 UV LED modules Back: Full coverage 24 UV LED modules
  • Electrical380V 3ø / N /PE 50 / 60Hz 25A
All specifications

ThermoFlexX Catena-E 80 Overview

Benefits

PRODUCT CHARACTERISTICS

  • ThermoFlexX Catena-E 80 uses latest technology high-power LED’s for the main exposure process in order to eliminate oxygen effects in flexo plate making.
  • Catena-E provides precise image reproduction and fine relief elements for the highest possible.
  • Perfect for imaging the finest Surface Micro Structures such as Woodpecker Nano.

CONTROLLED ENCLOSED ENVIRONMENT

Catena-E systems feature an automatic cover to keep dust away from the plate. Catena-E has a fully controlled internal environment with controlled air circulation, extraction and water cooling to ensure truly consistent exposures from plate to plate, year to year.

OPEN, CHOOSE HOW YOU USE CATENA-E

Catena-E presents the opportunity for total optimisation of main and back plate exposure. Users can choose to have a XSYS technician finalise and secure settings for the easiest of operation. Or, with training, experienced users can fine tune their own parameters to add value through their own expertise.

HIGHEST QUALITY FLAT-TOP-DOT PLATES

ThermoFlexX Catena-E uses latest technology high-power LED’s to eliminate oxygen eects in flexo plate making. Catena-E provides precise image reproduction and fine relief elements for the highest possible flexo print quality. Perfect for imaging the finest Surface Micro Structures such as Woodpecker Nano.

BUILT FOR SERVICEABILITY

Should LED replacement be found necessary, modules are reasonably priced and easy to replace with basic training. This ensures the highest possible levels of exposure consistency coupled with low cost of ownership with a built-in measurement system for main and back exposure.

AUTO LED QUALITY CHECK ENSURES CONSISTENCY

Both main and back exposure LED outputs are checked for consistent output. This can also be done remotely, enhancing support capability.

FAST EXPOSURES FOR ALL PLATES

Powerful LEDs and full coverage back exposure ensure that Catena-E is fast enough to keep pace with TFxX80D, the most productive LAMs imager available today, even for the thickest plates.

SUPER STABLE LONG-LIFE LEDS

Extremely stable LEDs are used. They are fully tested to 10,000 operating hours and beyond. The LED’s are instantaneously stable, thus no warm-up time is necessary.

PRECISION FLOORS

Compared to standard tube exposure, LED technology does not need to be heated up and has direct stable output. Therefore, flexo plate floors have never been as precise as with Catena-E.

Get in touch

Let’s optimize your printing process!
Contact us for innovative solutions and expert support.

Request Quote

Specifications

The main specifications of the ThermoFlexX Catena-E 80

  • Dimensions (WxDxH)3550 x 1960 x 1350mm (140 x 77x 53”)
  • Dimensions (WxDxH) lid open2000mm (79")
  • Plate ThicknessMax. 7mm (0.276”)
  • UVA-LEDMain: Traversing 24 UV LED modules Back: Full coverage 24 UV LED modules
  • Electrical380V 3ø / N /PE 50 / 60Hz 25A
  • Packed Dimensions (WxDxH)3800 x 2210 x 1600mm (150 x 87 x 63")
  • Plate Size Max. 1270 x 2032mm (50 x 80”)
  • ExtractionConnection diameter 160 mm 600 m3/h flow
  • Weight1500kg (3300lbs)
