Product Overview
-
ITR

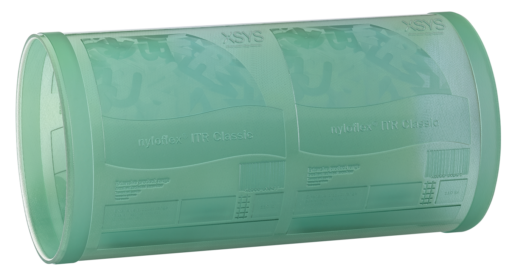

- In-The-Round: Endless ready-to-image photopolymer sleeves with LAMS layer for digital artwork
Benefits
- Combines advantages of XSYS dedicated photopolymer plate technology with vast experience in production of sleeves
- Perfect for endless designs and seamless printing
- Several available wall thicknesses to match required job specifications
Footnotes:
(1) US sizes for ¼“ and 1/8“
(2) Modified base sleeve wall thickness for repeat ranges above 760 mm for nyloflex ITR Classic.
(3) Additional lengths available on request.
(4) Suitability with UV inks is dependant on the ink type and temperature – these factors could affect the performance of the plate and consistency of the print.
Specifications
Application
High quality printing + increased stability due to 0.45 mm base sleeve
Thin Variable:
For printing variable repeat sizes with adapted photopolymer thickness
Wall thickness (1)
Thin: 1.57 mm 1.57 mm
Thin Variable: 1.33 – 3.33 mm
Repeat range
Thin: 290 - 910 mm
Thin Variable: 288.72 – 920.5 mm
Length (3)
280 mm - 1700 mm
Relief depth
Standard: 0.7 mm
Also available from 0.5 mm - 2 mm
Tonal range (%)
1% - 98% at screen ruling of 60 liter/cm (150lpi)
Suitable adapters
rotec® H/C Adapter
Suitable equipment
nyloflex® ITR Thin and nyloflex® ITR Classic can be processed with the nyloflex® ITR Exposure and nyloflex® ITR Processor and all commonly used devices.
Printing Inks (4)
nyloflex® ITR Thin and nyloflex® ITR Classic are suitable for all water based and alcohol based printing inks and conditionally suitable for UV inks. (ethyl acetate content preferably below 15%, ketone content preferably below 5%)
Washout solvents
Especially good results are achieved with nylosolv® washout solvents. nylosolv® can be distilled and reused
