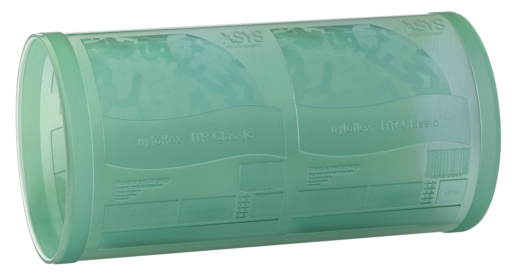

nyloflex® ITR Classic Sleeve
In-the-round ready-to-image photopolymer sleeves available as nyloflex® ITR Thin or nyloflex® ITR Classic.
Main specifications
- ApplicationStandard printing
- Classic VariableFor printing variable repeat sizes with adapted photopolymer thickness
- Wall thickness (1)Classic: 3.165 mm
- Classic Variable: 1.68 – 4.68 mm
- Repeat range (2)Classic : 300 - 920 mm
Main specifications
- ApplicationStandard printing
- Classic VariableFor printing variable repeat sizes with adapted photopolymer thickness
- Wall thickness (1)Classic: 3.165 mm
- Classic Variable: 1.68 – 4.68 mm
- Repeat range (2)Classic : 300 - 920 mm
nyloflex® ITR Classic Sleeve Overview
In-The-Round: Endless ready-to-image photopolymer sleeves with LAMS layer for digital artwork
Benefits
- Combines advantages of XSYS dedicated photopolymer plate technology with vast experience in production of sleeves
- Perfect for endless designs and seamless printing
- Several available wall thicknesses to match required job specifications
Footnotes:
(1) US sizes for ¼“ and 1/8“
(2) Modified base sleeve wall thickness for repeat ranges above 760 mm for nyloflex® ITR Classic.
(3) Additional lengths available on request.
(4) Suitability with UV inks is dependant on the ink type and temperature – these factors could affect the performance of the plate and consistency of the print.
Get in touch
Let’s optimize your printing process!
Contact us for innovative solutions and expert support.
Specifications
The main specifications of the nyloflex® ITR Classic Sleeve
- ApplicationStandard printing
- Classic VariableFor printing variable repeat sizes with adapted photopolymer thickness
- Wall thickness (1)Classic: 3.165 mm
- Classic Variable: 1.68 – 4.68 mm
- Repeat range (2)Classic : 300 - 920 mm
- Classic Variable: 290.92 – 918.99 mm
- Length (3)280 – 1700 mm
- Relief depthStandard: 0.7 mm (0.028 inches)
- Also available from 0.5 mm - 2 mm (0.020 - 0.079 inches)
- Tonal range (%)1% - 98% at a screen ruling of 42 liter/cm (110lpi)
- Suitable adaptersrotec® H/C Adapter, rotec® Adapter, standard air-cylinder
- Suitable equipmentnyloflex® ITR Thin and nyloflex® ITR Classic can be processed with the nyloflex® ITR Exposure and nyloflex® ITR Processor and all commonly used devices.
- Printing Inks (4)nyloflex® ITR Thin and nyloflex® ITR Classic are suitable for all water based and alcohol based printing inks and conditionally suitable for UV inks. (ethyl acetate content preferably below 15%, ketone content preferably below 5%)
- Washout solventsEspecially good results are achieved with nylosolv® washout solvents. nylosolv® can be distilled and reused.
