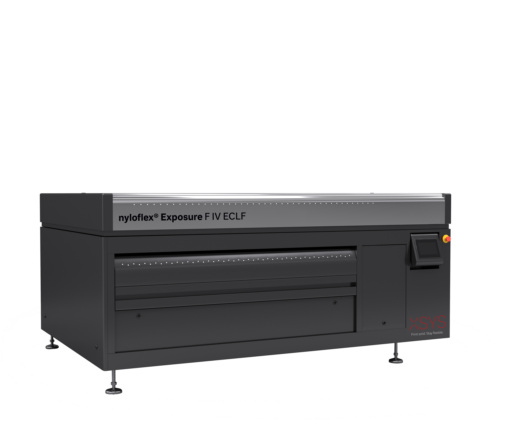

nyloflex® Exposure F IV ECLF
Combined exposure and light finisher unit with reduced footprint and efficient design. High concentration of UV-A lamps to ensure the highest UV output.
Main specifications
- Maximum plate size (W x L)1200 mm x 1600 mm (47" x 63")
- Electrical connection400 V/ 50/60 Hz (3 Ph/N/PE)
- Electrical connection230 V/ 50/60 Hz (3Ph/PE)
- Nominal curent400 V: 15A / 230 V: 25A
- Nominal power9.5 kW
Main specifications
- Maximum plate size (W x L)1200 mm x 1600 mm (47" x 63")
- Electrical connection400 V/ 50/60 Hz (3 Ph/N/PE)
- Electrical connection230 V/ 50/60 Hz (3Ph/PE)
- Nominal curent400 V: 15A / 230 V: 25A
- Nominal power9.5 kW
nyloflex® Exposure F IV ECLF Overview
Benefits
Exposure section
- Integrated bed chiller allows for uniform and consistent temperature without limiting
exposure times - High concentration of UV-A lamps to ensure the highest UV output
- Fibre optic to detect defective lamps
- Air flow cooling system for exposure lamps with temperature control
- Stores up to 24 different process conditions
Light finishing section
- One-drawer UV-A / UV-C post exposure and light finishing system
- Includes air flow cooling system
- Fibre optic to detect defective lamps
Get in touch
Let’s optimize your printing process!
Contact us for innovative solutions and expert support.
Specifications
The main specifications of the nyloflex® Exposure F IV ECLF
- Maximum plate size (W x L)1200 mm x 1600 mm (47" x 63")
- Electrical connection400 V/ 50/60 Hz (3 Ph/N/PE)
- Electrical connection230 V/ 50/60 Hz (3Ph/PE)
- Nominal curent400 V: 15A / 230 V: 25A
- Nominal power9.5 kW
- Compressed airMin. 102 PSI (7 bar)
- Exhaust air flow rate600-650 m3/h
- Weight net1120 kg (2472 lbs)
- Weight gross1400 kg (3090 lbs)
- Crate dimensions (W x D x H)2930 mm x 1930 mm x 1 590 mm (116" x 76" x 63") 01-2021
- Recommended ambient temp.20 - 25 °C (68 - 77 °F)
