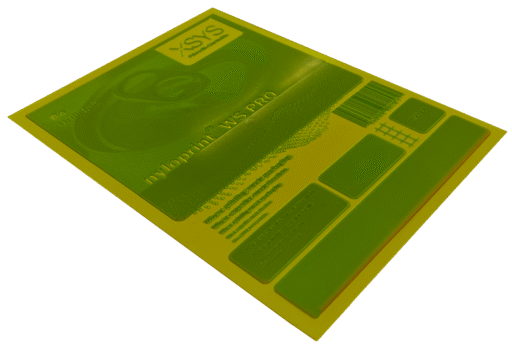

nyloprint® WS 95 PRO D

Steel based letterpress printing plate with enhanced print characteristics

Fill the form to download the file
English
  • English
  • Polish
  • Deutsch
  • Spanish
  • Japanese
  • Chinese
  • French
  • Italian
  • Russian

Product Overview

  • Water
  • Steel
  • Letterpress
  • Digital

Benefits

Higher print quality

+ Reproduction of finer details and less dot gain due to digital imaging
+ High dimensional stability
+ No defects caused by dust and damaged films
+ No data loss during transfer
+ Smoother plate surface can achieve higher density
+ Highly consistent especially when repeating plate processing

Cost effective and environmentally friendly

+ No film costs
+ No chemicals for film development
+ Electronic filing of graphics, film storage is redundant
+ Easy and fast data exchange – worldwide

Enhanced plate quality

+ For precise reproduction of fine highlights and smooth, uniform vignettes
+ LED optimized plate formulation
+ High resolution – up to 10 160 dp

Efficient, constant and fast plate processing

+ Highly productive and cost efficient
+ Optimized exposure characteristics when using an UV LED inline setup
+ Suitable for processing with all types of equipment – plush and brush washers as well as exposure with UV-A tubes of type 09N and 10R
+ Excellent contrast of the finished plate for easy visual check

Product applications

+ Ideal for cans, cups and tubes applications
+ Ideal for security printing and label printing
+ Suitable for rotary letterpress, imprinting units and special-purpose printing presses

Highest print quality

+ High print contrast with an exceptional tonal range
+ For enhanced reproduction characteristics: finest details and deeper reverses – thus wide tonal range and soft fade-outs
+ Superior ink transfer, for very even ink laydown and improved solid ink density
+ Very good durability for long print runs

Specifications

Base Material
steel
Colour of raw plate
green
Total thickness (mm) (inch)
0.95 (0.037”)
Plate hardness (Shore D)
71 (53)
Relief depth (mm) (inch)
0.68 (0.027”)
Tonal range (%)
1 – 98%
Fine line width (down to μm)
<100
Isolated dot diameter (down to μm)
<200
Distortion factor (mm) (inch)
5.25 (0.206”)
Laser energy (J/cm2 ) approx.
~ 2.8
Main exposure (min)
2.5 – 4.5
Washout time
4 – 5
Washout temperature
30°C / 86° F
Drying time at 80°C / 176°F (min)
10 – 15
Post exposure (min)
2
