ThermoFlexX Catena-E 80 T

Exposing system for flexo plates

Fill the form to download the file
  • English
  • Polish
  • Deutsch
  • Spanish
  • Japanese
  • Chinese
  • French
  • Italian
  • Russian


Highest Quality Flat-Top-Dot Plates

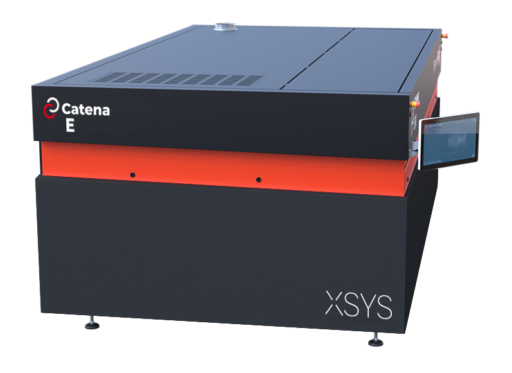

ThermoFlexX Catena-E 80 T uses latest technology high-power LED’s for the main exposure process in order to eliminate oxygen effects in flexo plate making. The back exposing process is done by means of well proven UVA tubes. Catena-E provides precise image reproduction and fine relief elements for the highest possible flexo print quality. Perfect for imaging the finest Surface Micro Structures such as Woodpecker Nano.

OPEN, Choose How You Use Catena-E

Catena-E presents the opportunity for total optimisation of main and back plate exposure. Users can choose to have a XSYS technician finalise and secure settings for the easiest of operation. Or, with training, experienced users can fine tune their own parameters to add value through their own expertise. YOU’RE THE DRIVER

Built For Serviceability

Should LED replacement be found necessary, modules are reasonably priced and easy to replace with basic training. This ensures the highest possible levels of exposure consistency coupled with low cost of ownership. Catena-E features comprehensive remote support capabilities


Maximum plate size (W x L)
1270 x 2032mm (50 x 80”)
Electrical connection
380V 3ø N+PE 50 / 60Hz 25A
Main: Traversing 24 UV LED modules Back: Full coverage 45 UVA tubes
Connection diameter 160 mm 600 m3 /h flow
Maximum Plate thickness
Dimensions (W x D x H)
3550mm, 140”/1960mm, 77”/ 1350mm, 53” 2000mm, 79” lid open
Crate dimensions (W x D x H)
3800mm, 150”/2210mm, 87”/ 1600mm, 63”
