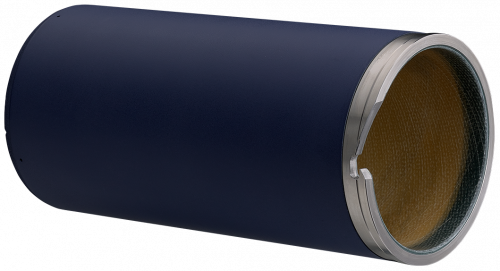

rotec® H/C Adapter

Compressible adapters to mount In-The-Round sleeves

Product Overview

  • Compressible
  • Superior Dimensional Stability
  • Conductive option
  • These products are ideal for high-speed applications, because the construction and materials of these adapters provide bounce reduction properties.
  • These products provide superior dimensional stability, because the adapter construction includes an additional glassfiber barrier layer to prevent any growth.
  • Available with rotec® Ω Technology that provides complete conductivity from the base sleeve through to the surface.

Benefits

  • Exclusive compressible anti-slip surface
  • Consistent printing performance, especially for long print runs, due to bounce-back properties of the compressible surface
  • Available as Bridge, Unifit or Airo versions for customised air transfer system

Air source

How the air flows into the adapter

Bridge:

For wall thicknesses below 10 mm. Conducts air from the air cylinder to the surface via air holes.

Unifit:

Customised air transfer system for most types of air cylinders. In the Eco Bridge version, the air holes are replaced by a breathable metal ring on the operator side.

Airo:

Dedicated external air connection system. In the Eco Bridge version, the air holes are replaced by a breathable metal ring on the operator side.

Air Distribution

How the air flows out of the adapter, in order to mount the sleeve

Standard Air Holes

4-8 air holes on operator side, additional holes along the length of the adapter

Specifications

Field of Application
Mid-web, Wide-web, Pre-Print
Wall thickness (Bridge)
4.7 mm - 11 mm
Wall thickness (Unifit)
11 mm - 80 mm
Wall thickness (Airo)
17.5 mm - 125 mm
Outer diameter tolerance
+/- 0.02 mm
Total indicated run-out (TIR) tolerance
+/- 0.02 mm (measured on carrier cylinder at TIR ≤ 0.005 mm)
Length tolerance
According to DIN ISO 2768 T1c
